Application of EMI: Gas Stovetop Design

5.  Learnability Design

The Dangers of Inconsistency and
Unpredictable Mappings

The stovetop design  in Fig. 1 is quite peculiar. There are three burners and four identical control knobs. Embedded into the stove top are mapping lines which help users figure out the mapping of the two right burners, but the main left burner is a bit of a mystery. In this design, the associations in WM are weakened by odd mappings and two controls for one burner (some users with a strong goal-oriented focus on the control knobs, might not even see the mapping lines, especially in a dim or brightly lit room with no shadows).

The stovetop design in Fig. 2 uses diagrams above the controls to help users determine mapping. The problem is users have to step back and crouch down to look at these mappings. Most users will not do this because it is easier to just turn a knob (you have a 50/50 chance). A dirty stove will also present problems.

Furthermore, the third knob from the left which operates the oven is identical to the other knobs which operate the burners. Although the largest burner on the lower left is easily mapped to the first control, invariably the two right burners are difficult to figure out. Three decorative mappings in the middle of the control panel further confuse users increasing load to working memory.

The stovetop design in Fig. 2 could be improved by moving the oven control to the middle, and by using slightly smaller knobs for the controls that map to the two small burners top-left and bottom-right.

The stovetop designs in Fig. 2, Fig. 3, and Fig. 4, might explain the increasing popularity of conceptually simpler three burner designs. Four burner stovetops are frequently poorly designed. Strangely enough, each of the stovetops have different mappings for the two right burners (see Fig. 5). Four burner stovetops are notorious for variations in burner mappings; survey your local appliance store and find out for yourself. The chances of accidentally leaving a burner on are higher than design that facilitates the retention of an accurate conceptual model that can be easily sketched from memory.

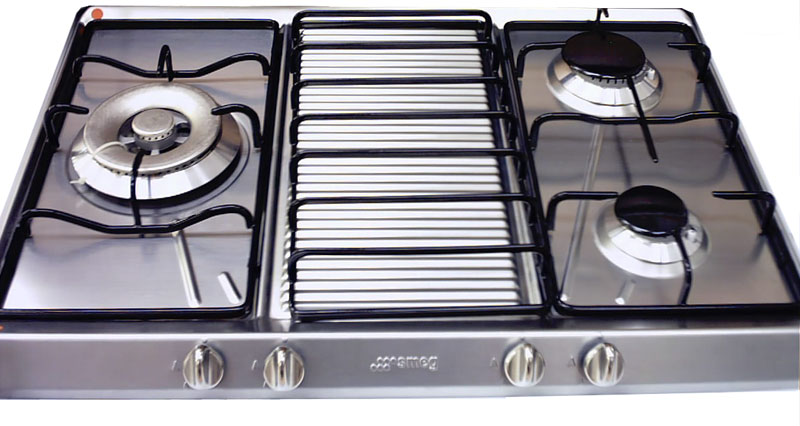

Fig. 1. A Three Burner Stove With
Four Identical Control Knobs

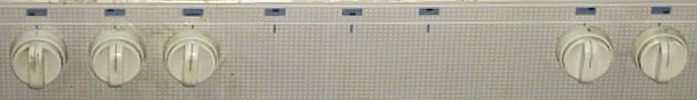

Fig. 2. Four Burner Stovetop With Mappings
That Are Difficult to Make Out

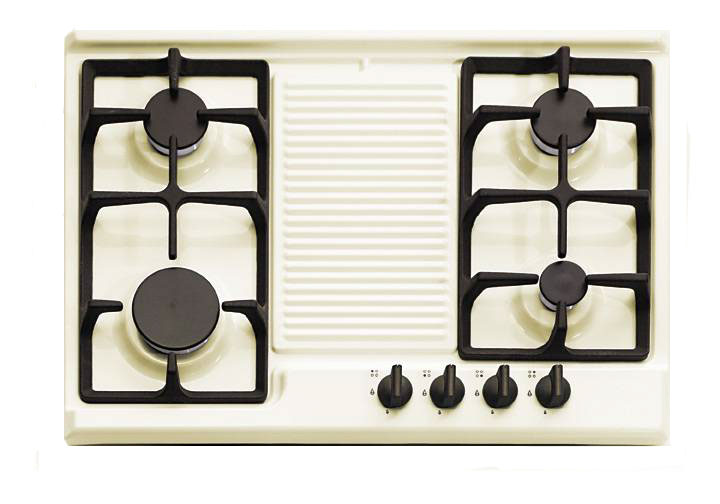

Fig. 3. Four Burner Stovetop With
More Common Mappings

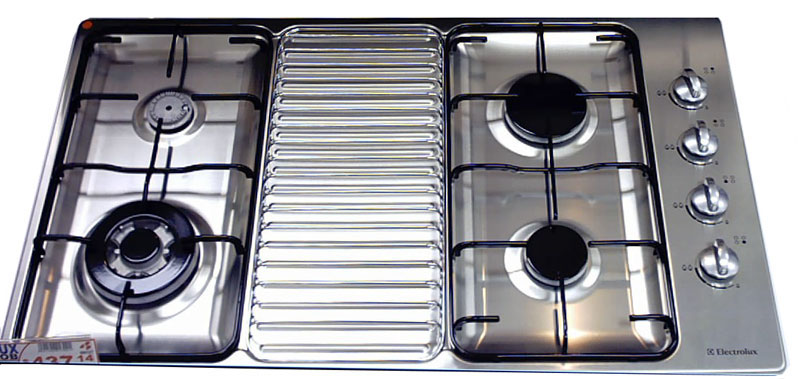

Fig. 4. Four Burner Stovetop With
Unconventional Mappings

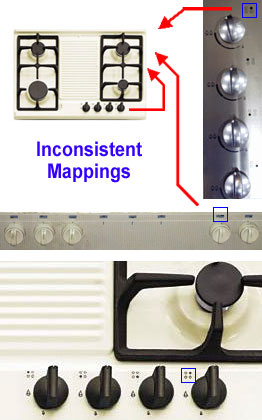

Fig. 5. Different Mappings for the
Two Right Burners (see Fig. 2, 3, and 4)
